Ms Barrels India is one of the leading manufacturer of MS-Barrels that are created using state-of-the-art technology and infrastructure. Our company has been renowned as a top MS drum barrels manufacturer India inculding gujarat, Bharuch, Dahej for quite some years which allowed us to pose as a serious competitor for other similar companies. We are also specialized as hdpe drums manufacturers, Metal drum manufacturers, Mild Steel 210 liters, 55 gallon ms barrel, W – Bead Close Mouth drum and Oil Drum Manufacturers all over India. Our variety of products makes us the best manufacturer and seller of 210 liters MS Barrels in Dahej and 55-gallon MS Barrel in Gujarat. With modernization and constant up-gradation of our plant with the latest technology, the company has never looked back.
Our endeavor right from suggesting proper packaging and filling methods, providing packaging solutions for industrial and food grade aromatics, to selecting the right grades and stringent quality controls has made us a name to reckon with. A high drop impact resistance provides safety, durability and long life to our drums. We always look ahead to provide the best of quality to our customers with utmost dedication towards our work. Being the best drum manufacturers in India, MS drums meet the complete storage management requirement of your products/goods.
Plain / Epoxy Lacquer Internal Surface
18G (1.2mm x 1.2mm x 1.2mm)
200/210 litres capacity close mouth barrel.
Internally Plain or Epoxy Coated and Externally Painted to your Colour.
| Tare Weight | 22 Kgs + 0.5Kg |
| Dimensions | |
| Height | 883 + 3mm |
| Diameter | 559 |
| Inner Height (mm) | 584mm (max) |
| Opening | 50mm & 20mm |
20G (1.0mm x 1.0mm x 1.0mm)
200/210 litres capacity close mouth barrel with multi corrugation.
Internally Plain or Epoxy Coated and Externally Painted to your Colour.
| Tare Weight | 18 Kgs + 0.5Kg |
| Dimensions | |
| Height | 883 + 3mm |
| Diameter | 584mm (max) |
| Opening | 50mm & 20mm |
Plain / Epoxy Lacquer Internal Surface
18G (1.2mm x 1.2mm x 1.2mm)
200/210 litres capacity close mouth barrel. Internally Plain or Epoxy Coated.
Externally Painted to your Colour.
| Tare Weight | 22 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | 50mm & 20mm |
20G (1.0mm x 1.0mm x 1.0mm)
200/210 litres capacity close mouth barrel with multi corrugation.
Internally Plain or Epoxy Coated and Externally Painted to your Colour.
| Tare Weight | 18 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | 50mm & 20mm |
Plain / Epoxy Lacquer Internal Surface
18G (1.2mm x 1.2mm x 1.2mm)
200/210 litres capacity close mouth barrel.
Internally and Externally Zinc Plated.
| Tare Weight | 22 Kgs + 0.5Kg |
| Dimensions | |
| Height | 883 + 3mm |
| Diameter | 584mm (max) |
| Opening | 50mm & 20mm |
20G (1.0mm x 1.0mm x 1.0mm)
200/210 litres capacity close mouth barrel with multi corrugation.
Internally and Externally Zinc Plated.
| Tare Weight | 18 Kgs + 0.5Kg |
| Dimensions | |
| Height | 883 + 3mm |
| Diameter | 584mm (max) |
| Opening | 50mm & 20mm |
Plain / Painted / Food Grade / Epoxy Lacquer Internal Surface
18G (1.2mm x 1.2mm x 1.2mm)
160/180 Kgs. Capacity Open Mouth Barrel.
Internally Plain or Epoxy Coated and externally painted to your Colour.
| Tare Weight | 22 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | Full Open Top with removable lid & GI Lever type Ring. |
20G (1.0mm x 1.0mm x 1.0mm)
160/180 Kgs. Capacity Open Mouth Barrel.
Internally Plain or Epoxy Coated and externally painted to your Colour.
| Tare Weight | 18 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | Full Open Top with removable lid & GI Lever type Ring. |
Plain / Epoxy Lacquer Internal Surface
18G (1.2mm x 1.2mm x 1.2mm)

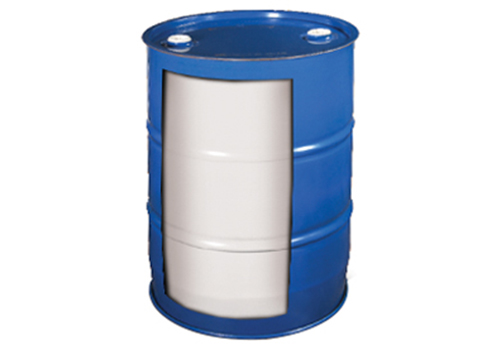

200 litres Capacity close mouth barrel fitted with HM-HDPE Liner inside.
Externally painted to your colour.
Tare Weight : 25.5 Kgs + 0.5 Kg, 27.5 Kgs + 0.5 kg
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Liner Type | HM-HDPE |
| Liner Weight | 3.5 Kg or 5.5 Kg |
| Opening | 2 opening of 50mm |
| Vent | 1 opening of 20mm at bottom |
Plain / Painted / Food Grade / Epoxy Lacquer Internal Surface
Inside coating = Food grade Lacquer (Gold lacquer coating) & absence of bulging, Twisting rest, water & foreign particles Dust etc. inside drums.
Drum capacity = 210 kg minimum.
Sheet thickness = 0.90 +- 0.10 mm.
Type of ring = Lever Type along with ring lock.
Thickness of ring = 1.25 +-1 mm
Tare weight of empty drum = 16.900 Kg
Paint shade RAL 3000
Cap seal (2” and ¾”)
With Logo = ASENOR L
Along with Food Grade Certificate
| Parameters | Dimensions |
| Outer Dia (mm) | 563 |
| Outer Height (mm) | 891 |
| Inner Dia (mm) | 559 |
| Inner Height (mm) | 865 |
| Weight | 16.800 |
Plain / Epoxy Lacquer Internal Surface
18G (1.0mm x 1.0mm x 1.0mm)
200/210 litres capacity close mouth barrel with multi corrugation.
Internally Plain or Epoxy Coated and Externally Painted to your Colour.
| Tare Weight | 22 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | Full Open Top with removable lid & GI Lever type Ring. |
20G (1.0mm x 1.0mm x 1.0mm)
160/180 Kgs. Capacity Open Mouth Barrel.
Internally Plain or Epoxy Coated and externally painted to your Colour.
| Tare Weight | 18 Kgs + 0.5Kg |
| Dimensions | |
| Height | 890 + 3mm |
| Diameter | 584mm (max) |
| Opening | Full Open Top with removable lid & GI Lever type Ring. |
We have our base of operations in India located in the city of Mumbai, Maharashtra. The manufacturing unit of our company is known for its strategic location that is in proximity to the port. It allows us to make sure that our products are delivered to our customers with minimal time delay. The manufacturing unit of our plant is also in proximity to our dedicated chemical blending units. It helps us to keep our entire manufacturing process short and speedy!
We are also backed by a huge fleet of widebody trucks that ensures no matter how big order is, MS barrels India can deliver the same to its customer(s) within the stipulated time. The loading procedures are not only carried out under the strict supervision of our top executives but are carried out using advanced loading equipment and automated machinery. It helps us to ensure that the barrels reach our customers with minimal damage.
